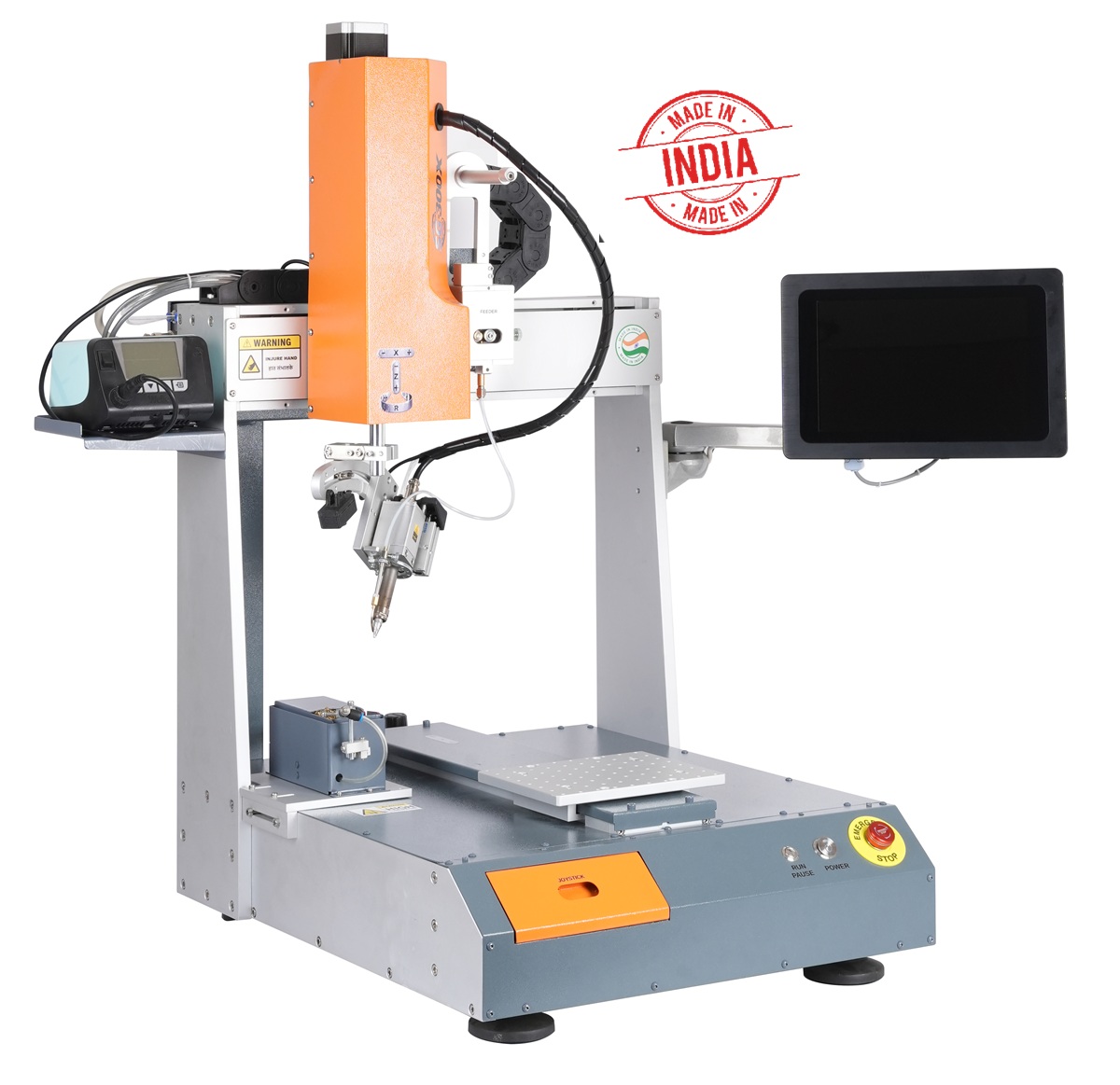

Made in India
Discover Made-in-India automatic PCB soldering robot — ideal for electronics and manufacturing industries. High precision, cost-effective, and perfect for leaded component soldering.
Overview
Precise soldering, simple operation, and cost-effective automation — with local support and customization comparable to high-end imported machines.

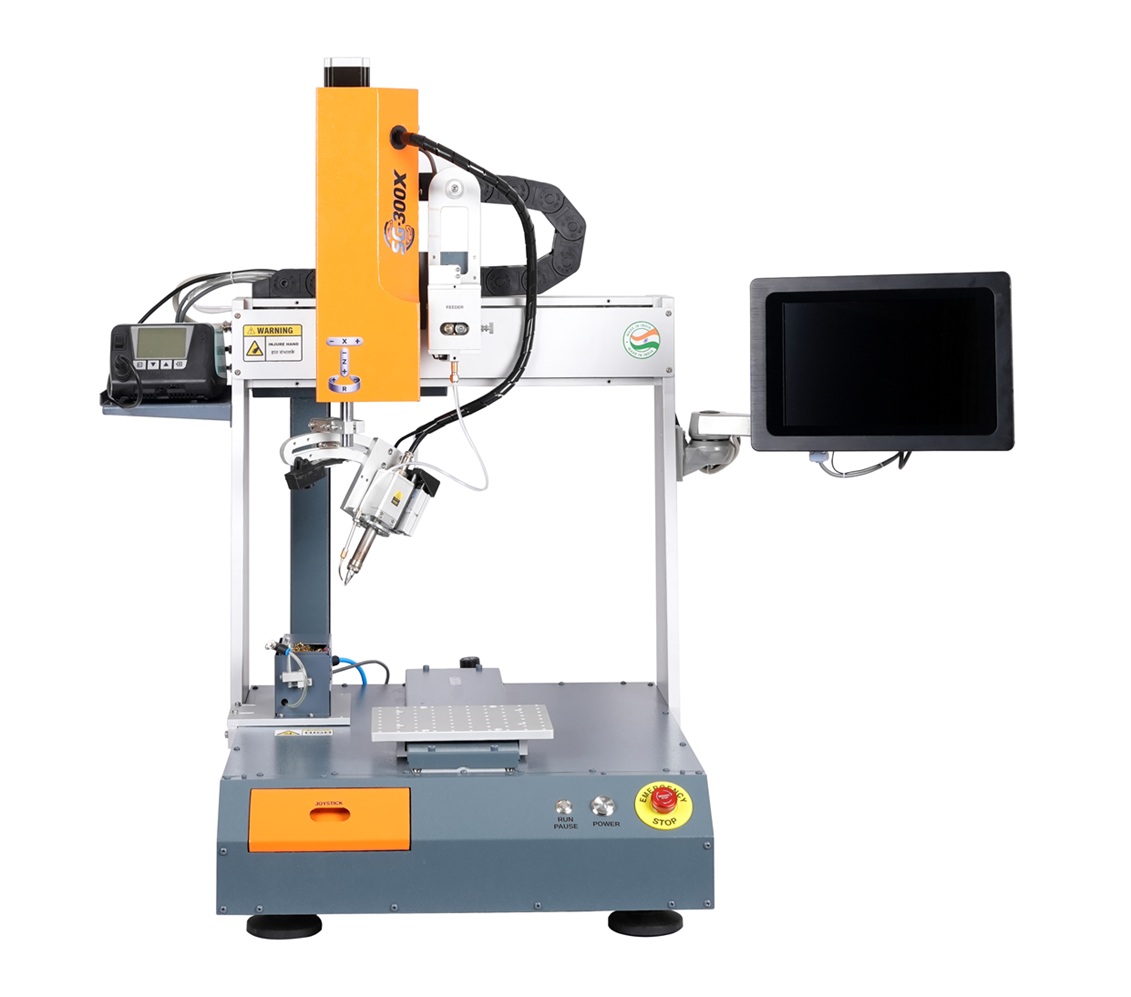

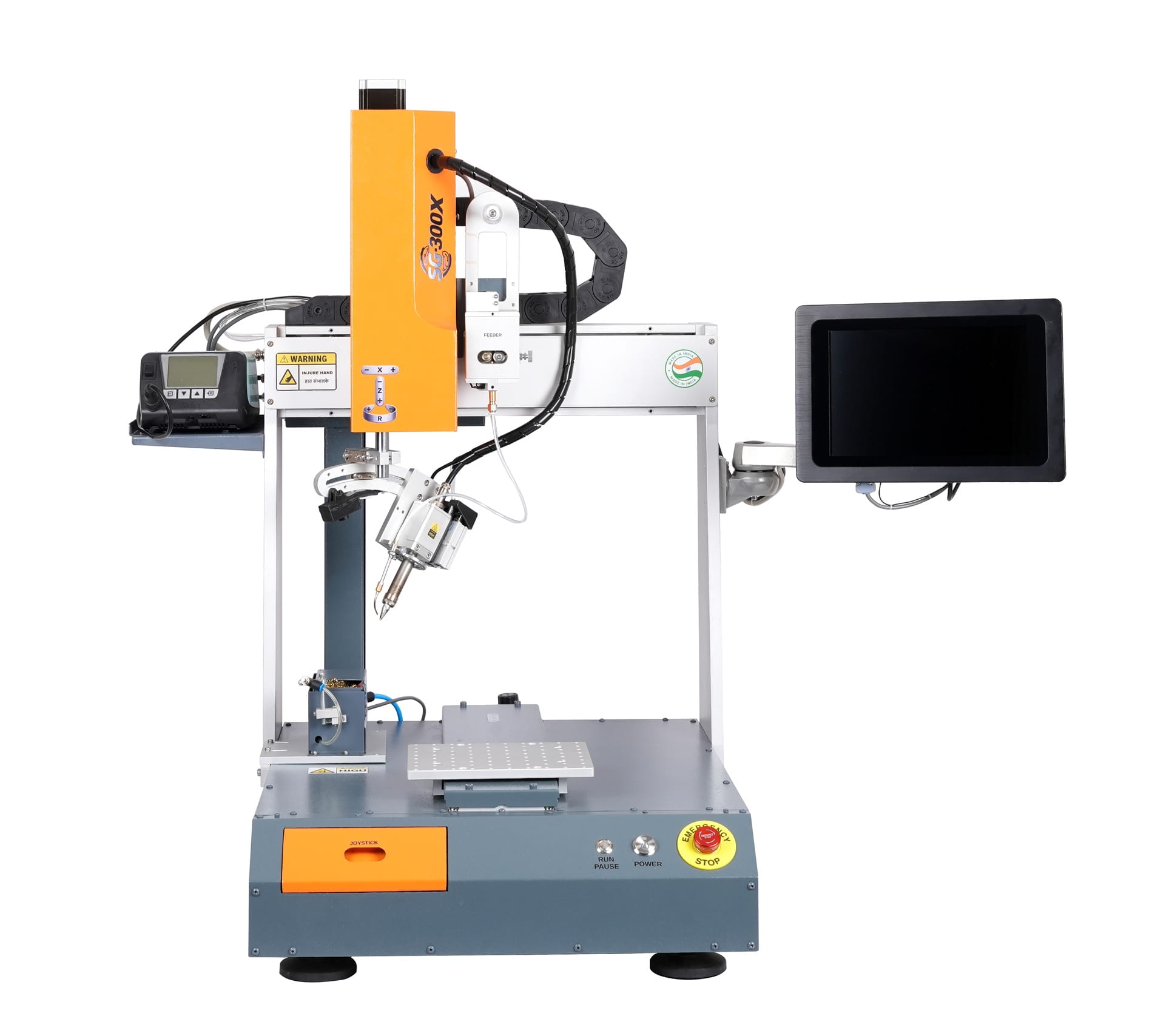

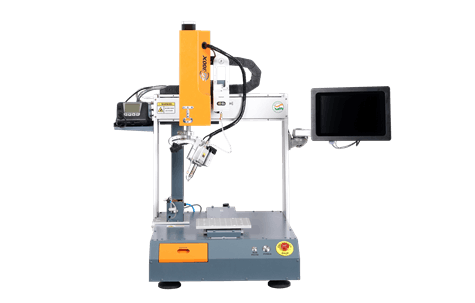

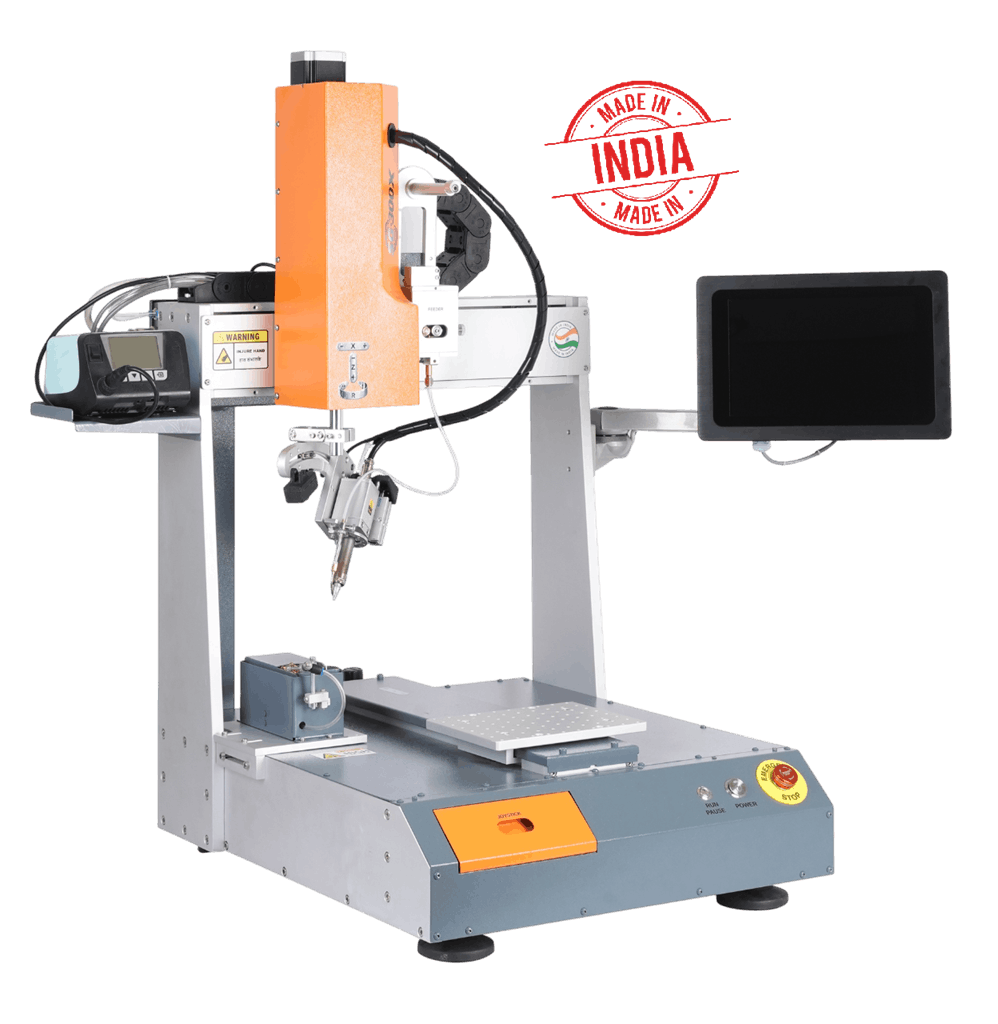

Product Overview
The robot combines precise soldering, easy operation, and cost-effective automation in a single platform. It delivers consistent solder quality, reduces manual dependency, and improves production efficiency, while offering features comparable to high-end imported machines with the advantage of local support and customization.
Working Principle
Manual soldering presents challenges such as:
Human error and fatigue leading to inconsistent quality and reduced throughput
Quality variability in large production runs
High labor cost and operator dependency
Safety hazards due to heat and fumes
The Automatic Soldering Robot overcomes these challenges by providing a controlled, repeatable, and intelligent soldering process.
Key Features
Motion, soldering, and control hardware built for precise PCB joints — from the 4-axis frame to the tip, feeder, and HMI.

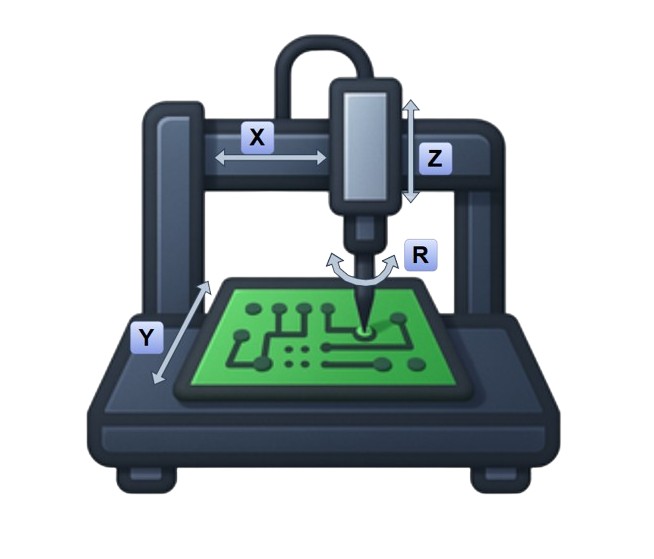

Precise X, Y, Z, and R motion (plus feeder) for accurate placement, smooth travel, and flexible soldering on complex PCB layouts.

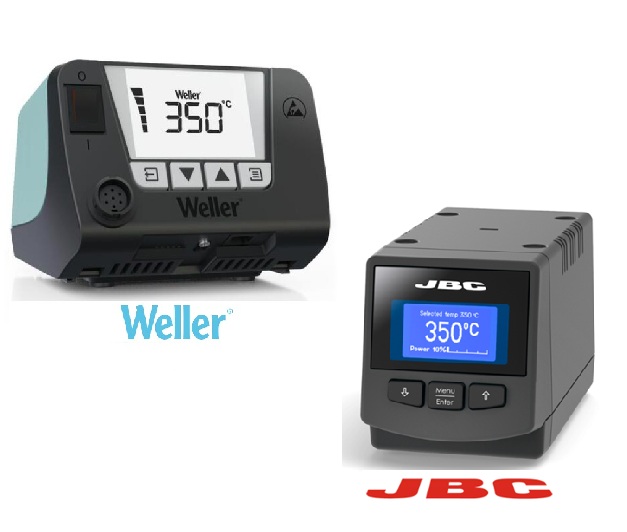

Industry-leading Weller or JBC stations with genuine tips and heaters for precise, consistent joints.

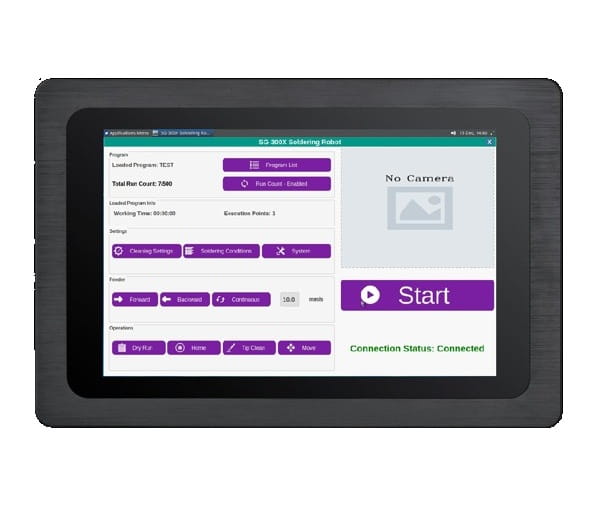

Modern HMI replaces teach pendants — clear screens for programming and operation with minimal training.

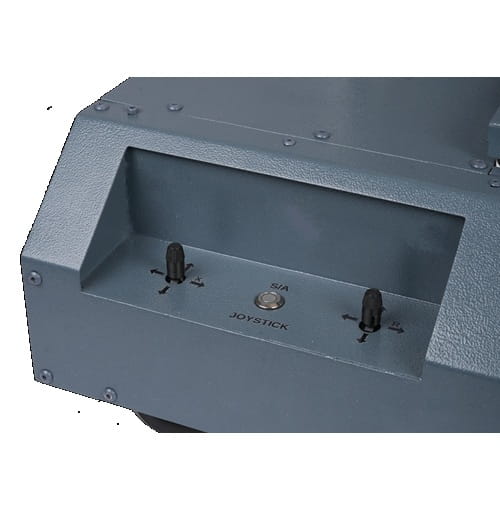

Teach points with joystick and wireless control — faster setup without a complex teach pendant.

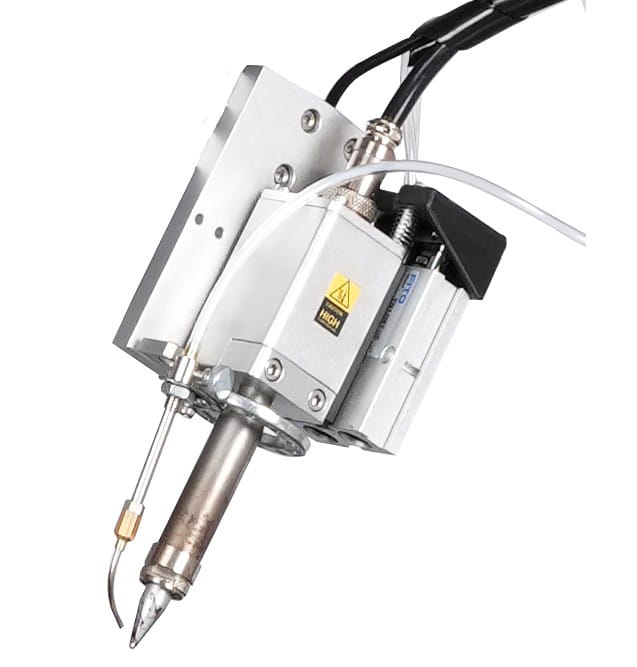

Air-actuated tip motion for quick response, shorter cycles, and stable repeat soldering.

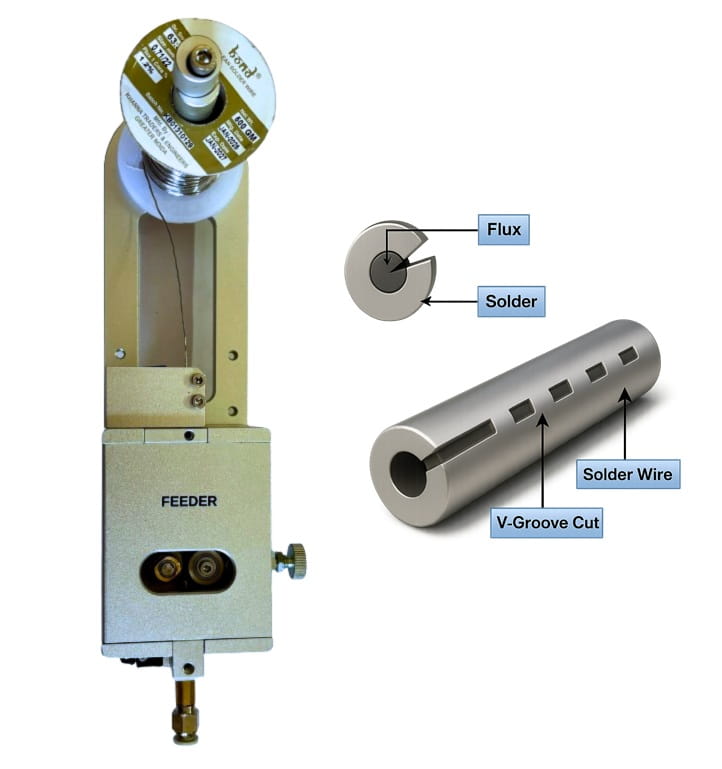

Detects run-out or jams and pauses the job; V-groove pierce reduces burst and flux splash for cleaner joints.

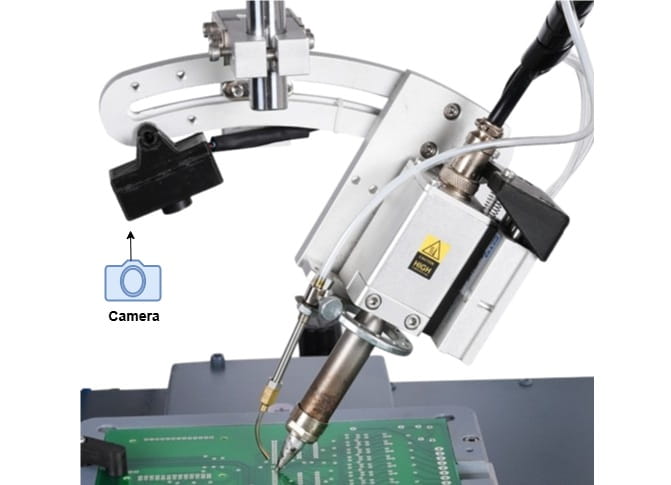

HD camera on the soldering head for live feed, real-time joint checks and video logging.

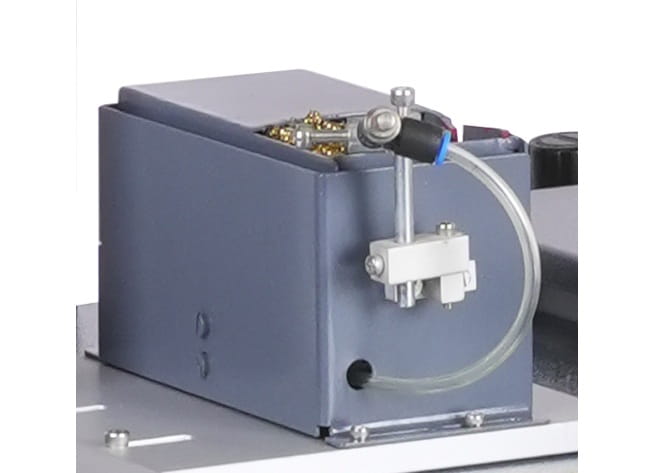

Built-in air-blast cleaning keeps the tip ready, cuts manual maintenance, and extends tip life.
Set temperature per solder point — software holds the profile for consistent quality and less thermal stress.

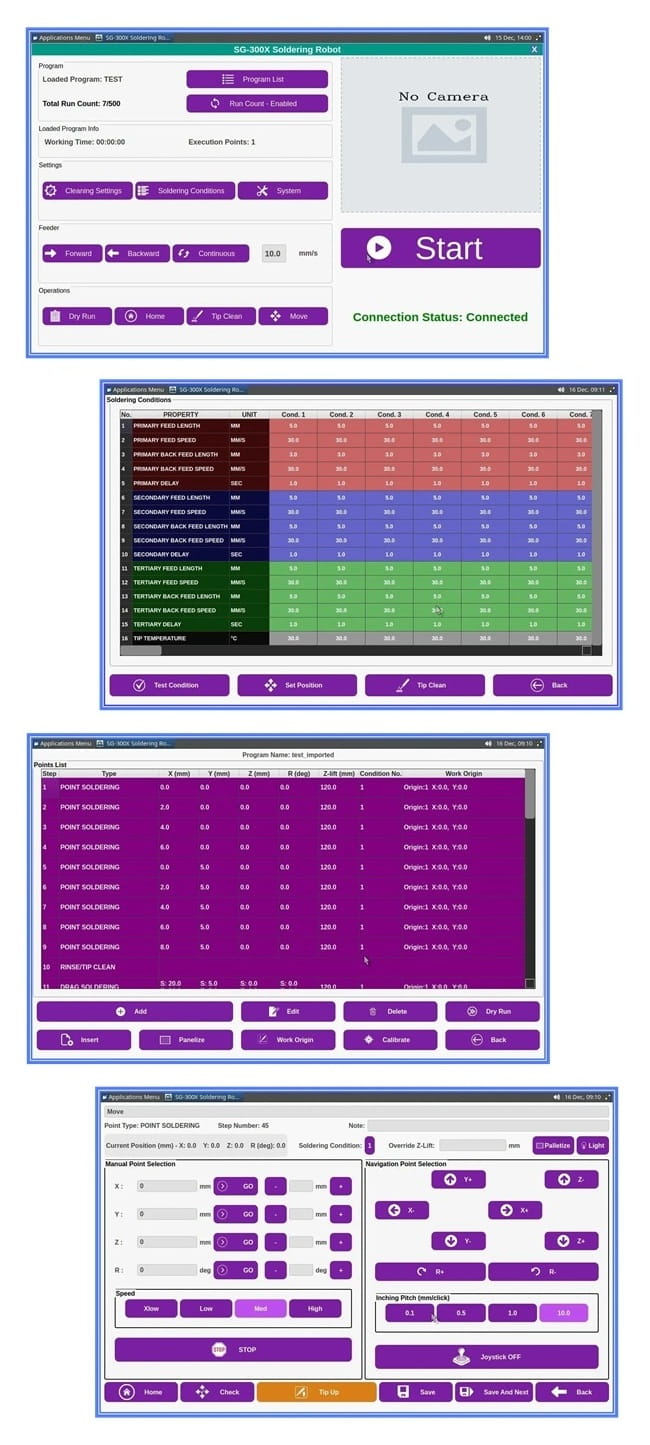

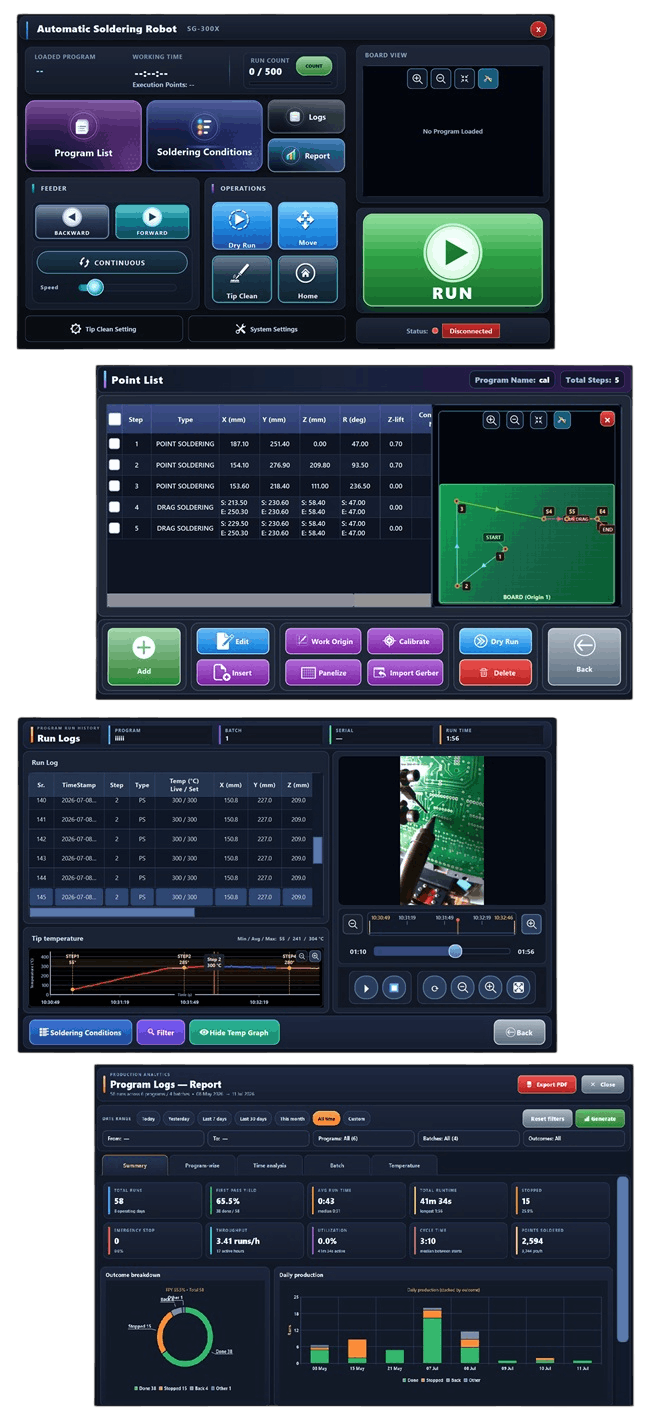

Software
Store over 500 programs and load the right one in seconds for each PCB design or production job.
Teach one board, then repeat it across the full panel from a single reference point — less setup, faster changeovers.
Choose from 200 conditions to fine-tune solder amount, speed, delay, and temperature for each joint type.
Move programs between machines quickly so every line runs the same recipe — no re-teaching required.
Use up to 10 work origins so one program covers multiple PCB positions on the bed without separate files.
For points at fixed X/Y pitch (like Berg strips), copy the first path and auto-repeat it to cut programming time.
Set a cycle limit that pauses the machine on schedule — ideal for tip changes and planned maintenance.
Shift all program coordinates in one step after a tip change or fixture move — stay accurate without rewriting programs.
Restart the program automatically at set intervals for continuous runs without pressing start each cycle.
Verify path, alignment, and sequence with motion only — no solder feed — before live production.

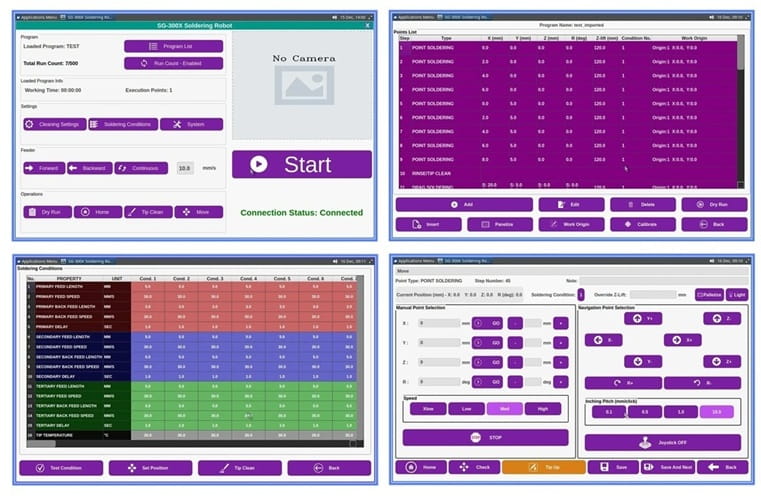

Clear screens for jogging, teaching, loading, and running — operators get productive with minimal training.
Watch the tip on the display with built-in lighting to teach points clearly and check joint quality live.
Solder single joints with point mode, or continuous paths with drag mode — flexible for mixed boards.
After a PCB shift, auto-adjust all solder coordinates in the selected program to restore alignment.
Run the interface in regional languages such as Hindi so operators who prefer local languages can work confidently without relying only on English.
Beyond standard pneumatic control, fine-tune tip motion and angle to reach tight or awkward joints that are hard to access with a straight approach.
Advanced
Go beyond basic teaching — import boards from Gerber, keep full process traceability, monitor machines remotely, and turn run data into clear production reports.
Build soldering programs from PCB Gerber files — auto-find joints, cut manual teach time, and get new boards running faster.
Log conditions with process video, coordinates, time, and temperature — linked to each PCB serial via barcode for fast defect investigation.
Learn more about Traceability
See robot status from the portal, sync Program Logs on demand, and open production reports — hosted in the cloud or on premises.
Learn more about Fleet Portal
Graphical reports on utilization, cycle stats, and line performance — track productivity and spot where to optimize.
Learn more about Production ReportApplications
Wave soldering works for high-volume through-hole runs — but many boards need selective, precise joints. These are the manufacturing scenarios where an automatic soldering robot is the better fit.
Selective soldering with controlled heat profiles protects sensitive components. Avoid wave damage, bridging, and overexposure on parts that need targeted joints.
90° board-to-board joints and mechanically constrained layouts are incompatible with wave. Robots deliver precise, targeted soldering where access is limited.
Wires, terminals, leaded parts, and large connectors need point soldering with controlled dwell and solder feed — tasks wave soldering cannot perform.
After SMT reflow, remaining through-hole parts still need reliable joints. Robots bring the precision and repeatability to meet IPC quality standards.
A full wave line is impractical for low to medium volumes. Robots balance flexibility and efficiency — change programs quickly for new board designs.
High-mix factories switch PCB designs often. Robots swap programs without tooling changes, keeping changeovers fast and production continuous.
Result: controlled, repeatable soldering for selective joints — where wave soldering falls short and manual work struggles with consistency.
Explore
Tap a numbered point or part name to see robot parts.
A 10-inch touch display for programming and machine control — no teach pendant experience required.
Benefits
From joint accuracy to shop-floor safety — what automatic PCB soldering delivers for quality, throughput, and day-to-day operations.
Advanced motion control keeps tip placement and travel smooth, so every joint lands accurately and reliably on the board.
Removes operator-to-operator variation so solder joints stay uniform across large production runs — better quality and fewer reworks.
Shorter cycle times and less manual soldering mean higher output with lower labor dependency and operating cost.
Switch programs quickly between PCB designs so the same cell keeps up with changing production mixes.
Keeps operators farther from heat, fumes, and hot tools — a safer soldering environment on the line.
Track progress and completed boards with clearer control, traceability, and faster response when something goes wrong.
Made in India
Designed, built, and supported locally — high-end automation without import barriers, with service you can reach.
Features and quality comparable to leading international brands — at a price that makes advanced automation realistic for more manufacturers.
Many imported machines leave you short on service, customization, and warranty. Ours is built for long-term reliability with local accountability.
Direct access to engineering teams, faster response, clearer communication, and spare parts when you need them.
Bridges the gap for SMEs and larger manufacturers — high-end automation that was once too costly or hard to support.
Customization
Designed and built in-house — so the platform can be tailored to your PCB, process, and production mix.
As the machine is entirely designed and developed in-house, we offer complete flexibility to customize it according to customer requirements, ensuring it is perfectly suited to specific PCB applications.
Beyond soldering, the same platform can be adapted for liquid dispensing, spraying, and automatic screw fastening — one base for multiple manufacturing needs.
Depending on technical feasibility, customization can be implemented across mechanical design, software (application), and electronic systems to meet unique production needs.
Single or dual head and bed options for simultaneous soldering and continuous runs — plus a 3-axis variant when needed.
Closed-loop, servo, or 5-phase steppers instead of open-loop drives for higher precision and smoother motion.
Swap belt-driven X/Y for ball screws when you need tighter positioning accuracy and repeatability.
Larger or smaller beds and height options sized to your PCB dimensions and production layout.
From fine-pitch tips to high-power stations — match the iron and tip to the joint, not the other way around.
Tailor mechanics, electronics, software workflow, feeder, and tip cleaning to your process and fixtures.
Same motion platform — reconfigured for dispensing, coating, or fastening.
Configure as a dispensing cell for bonding, component fixing, sealing, and potting on PCB assemblies.
Adapt for conformal coating, flux spray, protective coats, or lubricant application in electronics and industrial lines.
Convert the platform into an automatic screw-fastening system for assembly operations.
Gallery
Watch point soldering, drag soldering, and dry-run demos of the robot in action.
Swipe or use arrows to browse demos.
Explore the full playlist of applications and detailed demonstrations.
Specifications
* Repeatable position accuracy for X/Y/Z/R applies when main-body temperature is constant. Absolute accuracy is not guaranteed.
Comparison
| Feature | Chinese RobotBudget imports | SlightGen Soldering Robot(Made in India) | Premium ImportedJapan / Europe |
|---|---|---|---|
| Manufacturing Origin | Imported (China) | Made in India — design to manufacturing | Imported (Japan / Europe) |
| Price Advantage | Low price | Affordable / mid-range | Very expensive |
| Customization | Not available | Mechanical + software + electronics | Not available |
| Design Change | Standard model only | Axis, head, bed, dual options, motor & drive | Standard model only |
| Soldering Station | Chinese brand only | Weller & JBC | Own brand only |
| Soldering Station Quality | Basic | Premium (Weller / JBC) | Premium (own brand) |
| Gerber Import Feature | Not available | Easy Teaching using Gerber Files | Basic / limited |
| Technical Support | Weak support via importer | Direct local engineering support | Distributor-based / costly |
| Easy Touchscreen HMI | Teach pendant (complex) | 10″ touchscreen + joystick & wireless | Mostly teach pendant |
| Operator Friendly | Skilled programmer required | Any trained operator can run or program | Skilled programmer required |
| Soldering Tip Support | Chinese tips only (import) | Weller & JBC tips — locally available | Own-brand tips only |
| Traceability / Report | Not available | Video, temperature & parameters + reports | Basic / limited |
| Advanced Software Features | Basic / limited | Advanced features | Advanced but closed ecosystem |
| Remote Connectivity | Not available | IoT cloud / on-premises monitoring | Limited models |
| UI Regional Language | Not available | UI Regional Language e.g. Hindi | Not available |
| Spare Parts Availability | Import dependent | Locally available | Expensive imports |
| Best Suitable For | Budget buyers | SMEs, growing manufacturers & enterprises | Large enterprises |
